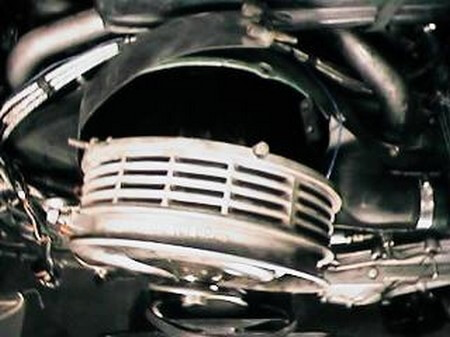

How to Replace a Fan Shroud Assembly

Below guide will teach you How to Replace a Fan Shroud Assembly . Please follow the instructions carefully.

Things You’ll Need:

  • Flashlight
  • Screwdriver
  • Socket and Ratchet Set
  • 3/8 in. Drive Ratchet

Estimated Costs:

  • DIY Costs: Est. $0.00 parts only
  • Shop Costs: Est. $118.58 parts and labor


  • Make sure that the engine is cold.
  • Prop the engine hood up and look for the fan shroud assembly which should be attached to the radiator.
  • Examine the fan shroud assembly carefully for any signs of damage, cracks, or any other wear and tear.
  • Detach the wiring connectors and unfasten the bolts holding the fan shroud assembling to the radiator.
  • Take the fan shroud assembly out of the engine compartment and replace it with the new fan shroud assembly.
  • Secure the new fan shroud assembly with the mounting bolts.
  • Reattach the wiring connectors and switch the engine on.
  • Make sure that fan functions properly.
